Butler Building
ROUND VENTS
The Simple, Reliable Ventilation Solution for Butler Buildings
Improve Airflow and Comfort Without Increasing Energy Costs
Maintaining proper airflow inside a metal building is critical for comfort, moisture control, and long-term building performance. Butler Round Vents offer a simple, cost-effective solution by using natural airflow to move hot, stale air out while allowing fresh air to circulate throughout the space.
Because they operate without electricity, round vents reduce energy costs while still delivering consistent ventilation. Ideal for warehouses, light industrial facilities, and smaller-scale buildings, they provide reliable performance with minimal upkeep and long service life.
Benefits of Butler Round Vents

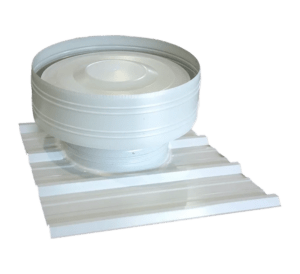

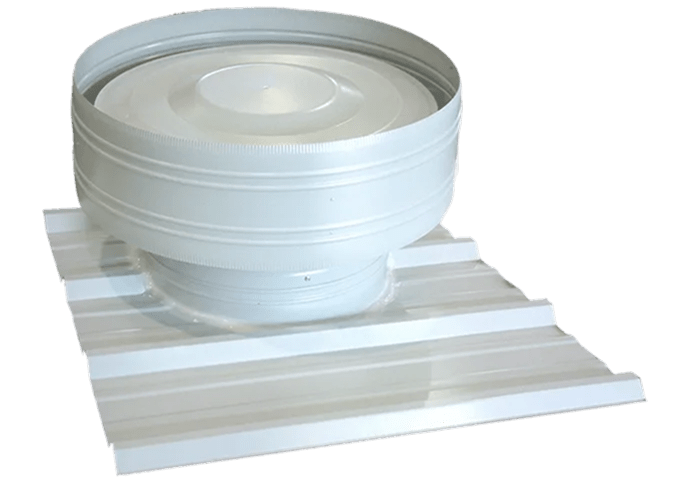

Round Gravity Vents
Improve airflow and temperature control in your steel building without increasing energy costs using Metallic Products’ round gravity vents. Designed for efficient, low-volume ventilation, they are ideal for warehouses, light industrial spaces, attics, and similar applications.
Operating without electricity, these vents provide natural airflow with little to no maintenance required. An adjustable damper allows you to control air movement while helping protect against wind-driven rain and backdraft.
Built for both function and appearance, round vents are available in a variety of colors and finishes to match your building or create a clean, modern accent.
Standard Sizes
Standard round gravity ventilators are available in 12”, 20” and 24” diameter throat sizes.
Integral Dampers
The damper is supported in the open position by four strong springs and is closed by a 5’ pull chain. Longer lengths are available upon request. Damper may be locked in any position by using the optional key type chain lock. Gravity ventilators may be furnished without damper if desired. However, overspray or driven rain may enter the vented space. Gravity vents with dampers may function as smoke exhaust vents by including a fusible link in the chain operator.
Construction
Aerodynamic design enhances the looks and performance of metal buildings’ architectural roof systems. Unit moves toward the ridge on floating roofs, and vents are made to match roof slope and maintain a low-profile appearance.
Bird Screen
Assembly requires the installation of a 4 x 4 bird screen in the opening, between the inner band and rain shield, to prevent birds from entering the vent area.
Finish
Galvalume finish is standard, but other colors — including Kynar® — are available upon request.
Base Design
Base is specifically designed for final installation with specified roof slope — either ridge or single slope, and either flat or mounted into the specified roof panel. Base and ventilating unit arrive preassembled, ready for installation. Single-slope bases mount directly to the roof panel and are placed in such a way as to prevent damming.
Note: When ordering, please specify roof slope, base type, damper pull chain and paint color.

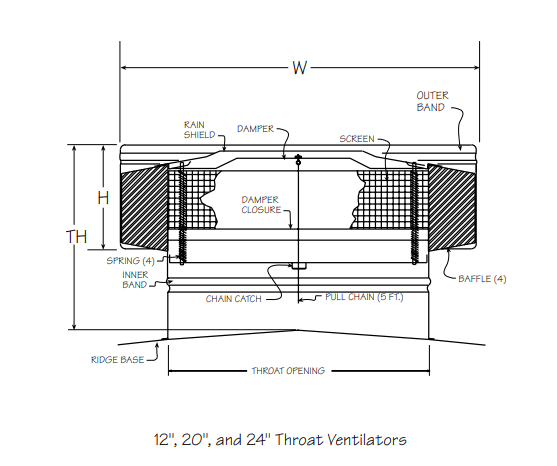

Specification Table
| Throat | W | H | TH | Shipping Weight (lbs.) |
|---|---|---|---|---|
| 12" | 18" | 7-1/2" | 14-1/2" | 90 |
| 20" | 30" | 10" | 17-1/2" | 110 |
| 24" | 36" | 12" | 23-1/2" | 120 |
